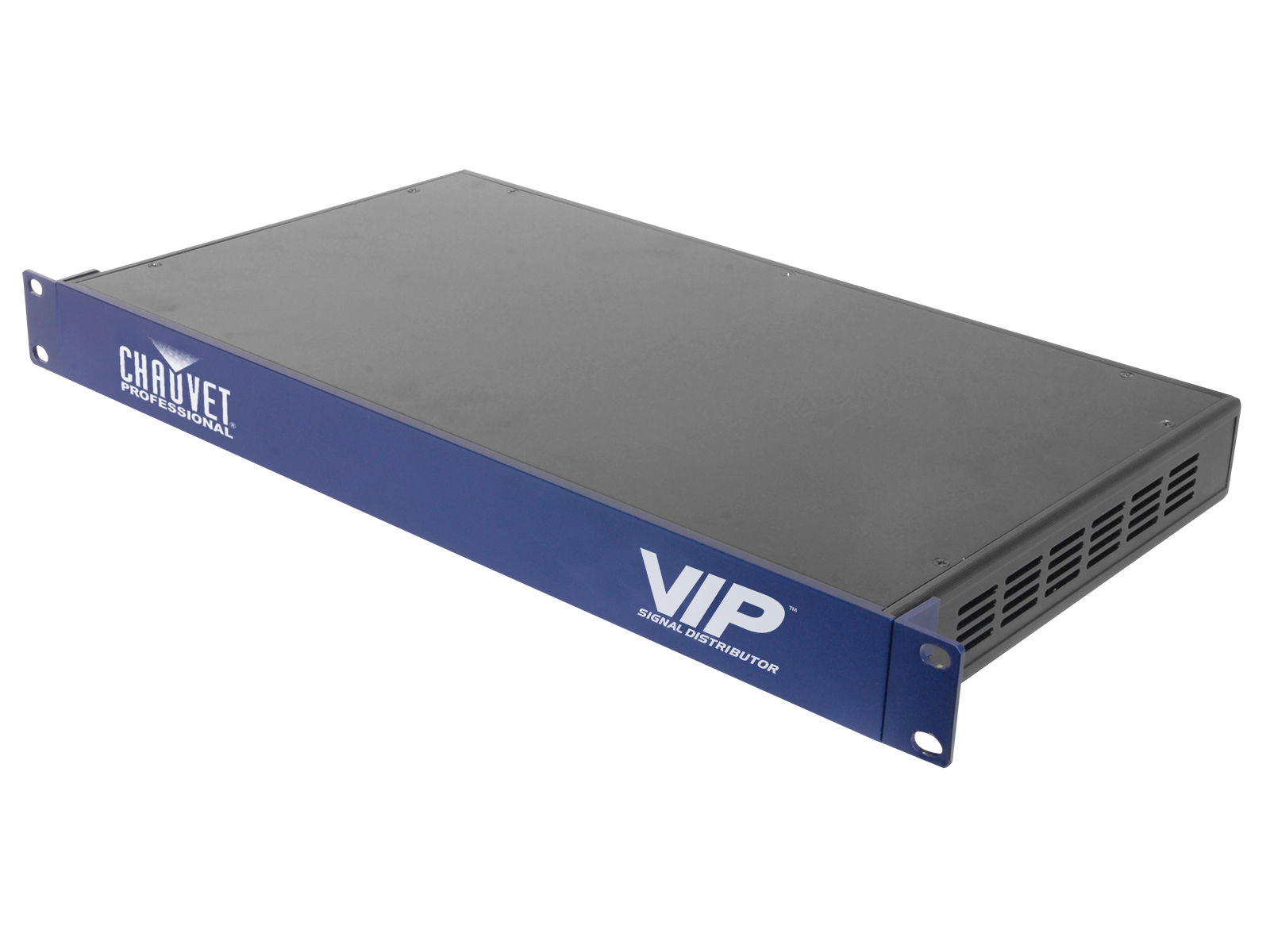

VIP Signal Distributor

VIP Signal Distributor splits, isolates and amplifies the signal from the VIP Drive 43s to the panels and is capable of 4-way, dual-channel splitting or 8-way, single-channel splitting.

Downloads

  • Distributes and amplifies the output from the VIP Driver (must not exceed LED quantity capacity)
  • Serves as a 2-channel, 4-way or 1-channel, 8-way device (requires 2 VIP Drivers)
  • You may link multiple units together for greater quantities
  • Required for signal cable runs over 100 m (serves as a signal amplifier)

Construction/Physical

  • Dimensions: 19 x 10 x 1.7 in (483 x 254 x 44 mm)
  • Weight: 5 lb (2.27 kg)
  • Housing Material: Aluminum alloy
  • Rackmount: 1U

Connections

  • Power Connection: Edison (Local) plug to IEC
  • Power Input: IEC
  • Cable Length (power): 5 ft (1.5 m)
  • Video Input: Neutrik etherCON(2)
  • Video Output: Neutrik etherCON(8)

Control

  • Control Protocol: LINSN

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 40 W, 0.33 A @ 120 V, 60 Hz
  • Power and Current: 40 W, 0.19 A @ 208 V, 60 Hz
  • Power and Current: 40 W, 0.17 A @ 230 V, 50 Hz

Certifications/Qualifications

  • CE, FCC
  • IP Rating: IP20, dry location

What’s Included

  • VIP Signal Distributor
  • IEC power cord
