C6
C6 is a video screen panel designed specifically for permanent indoor installation. It has 12,800 tri-color SMD 3528 LEDs, a 6.25 mm pixel pitch, and a 140° viewing angle for clear, crisp and powerful images. Its quiet, fanless operation makes it perfect for houses of worship. The four M12 threaded holes in the corners mount the panel securely to permanent structures. C6 also works with the existing PVP Rig Kit for attachment to truss structures and is fully compatible with the VIP Driver, VIP Signal Distributor, VIP 5162 Signal Processor, and VIP Media Server Pro.
Downloads
Features
- 6.25 mm pixel pitch LED video panel offering superb contrast through black face SMD 3528 LEDs
- 1000 mm x 500 mm panel size for the installation market
- Lightweight and modular installation system designed for fast installation
- Fanless design ensures silent operation
- Works with the VIP Driver, VIP Signal Distributor, VIP 5162 Signal Processor, and VIP Media Server Pro
- Using the PVP Rig Kit, you can hang 10 panels tall, for a total height of 10 meters of video wall
- Can also be installed using the M12 threaded inserts installed on all of the 4 corners of the wall
Optical
- Light Source: 12,800 LEDs (tri-color RGB) SMD 3528, 50,000 hours life expectancy
- Color Wavelength: red (620 to 625 nm), green (524 to 529 nm), blue (467 to 470 nm)
- Viewing Angle: 140°
- Illuminance: 1,500 NITS
- Pixels: 80 x 160
- Pixel Pitch: 6.25 mm
- Minimum Viewing Distance: 20 ft (6 m)
- Pixel Density: 25,600/m2
- Display Refresh Rate: 1,080 Hz
Construction/Physical
- Dimensions: 39.4 x 19.7 x 2.5 in (1,000 x 500 x 63 mm)
- Weight: 23 lb (10.4 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy
- Transparency: 0%
Connections
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Data Connectors: Neutrik etherCON (2)
- Cable Length (signal extension): 2.3 ft (0.7 m)
- Cable Length (power): 6 ft (1.83 m)
- Cable Length (power extension): 2.3 ft (0.7 m)
Control
- Control Protocol: LINSN
- Maximum Panels/VIP Driver: 102
- Video Input (compatible): 60 Hz
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 12 units @ 120 V; 21 units @ 208 V; 22 units @ 230 V
- Power and Current: 128 W, 1.06 A @ 120 V, 60 Hz
- Power and Current: 131 W, 0.63 A @ 208 V, 60 Hz
- Power and Current: 133 W, 0.60 A @ 230 V, 50 Hz
Certifications/Qualifications
- CE, MET
- IP Rating: IP40, indoor use
What’s Included
- C6 x 4
- 1 Neutrik powerCON power cord
- 4 Neutrik powerCON power linking cords
- 4 Neutrik etherCON signal linking cords

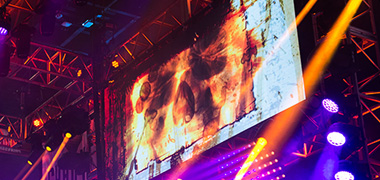

Gallery
